CPU Water Coolers - Useful?

Post by Paul9 » Wed, 13 Jan 2016, 17:11

Hi people,

I am trying to keep my 300amp controller from overheating on long trips on hot days. It probably doesn't help that I am putting around 110v through the 96v controller.

As per very good advice in a separate thread, I have fitted some fans to the heat sinks I had already installed on the controller. I am however still concerned that air cooling may not be sufficient to prevent overheating problems.

I noted in a mate's computer magazine an advert for water cooling "systems" to keep the CPU in the computer from overheating and wondered if such a water cooler could be more effective in keeping my controller cooler than the existing fans.

Would anyone know if these water coolers are effective? Useful?

Thanks in advance,
Paul

TooQik
Groupie
Posts: 177
Joined: Mon, 18 Jun 2012, 00:53
Real Name: Chris
Location: Pakenham

CPU Water Coolers - Useful?

Post by TooQik » Wed, 13 Jan 2016, 18:50

Hi Paul,

I run a water cooling loop in my gaming PC which works extremely well at keeping my CPU, three graphics cards and motherboard chip set cool. To give you an idea of effectiveness, my CPU runs around 20 degrees cooler while each graphics card run around 30 degrees cooler than air cooling.

Like all cooling systems, you'd need to calculate the amount of cooling capacity you need and size the system accordingly. You'll also need a cooling plate to attach to the component(s) that you wish to cool. You can probably buy a large cooling plate that will attach to where your current heat sinks attach.

The down side to water cooling is the amount of components for a loop. You need cooling plates, radiator(s), cooling pump, a reservoir, cooling fans (attach to radiator), hosing, associated water fittings as well as a means to control the loop electronically - you can buy controllers that monitor the temperatures and turn on/off, adjust flow accordingly, or simply have it powered on/off by a switch or left on permanently. All these components can get expensive quite quickly.

Personally, while I think water cooling is a good investment, if you find you're only needing extra cooling on rare occasions then I would look at simply purchasing larger fans to get more air flow over the heat sinks.

Good luck.

T1 Terry
Senior Member
Posts: 687
Joined: Thu, 30 Sep 2010, 20:11
Real Name: Terry Covill
Location: Mannum SA

CPU Water Coolers - Useful?

Post by T1 Terry » Wed, 13 Jan 2016, 19:25

Pure water will transfer 2 times the heat energy of air. If you can come up with a system that can transfer the heat from the controller to the water cooled pad, piped to a small radiator in good air flow and cycle the fans on the radiator to control optimum temp (can you run a controller too cold?)you will have a lot more success than attempting to use a computer cooler pad as there is a lot more heat to move.

T1 Terry
Last edited by T1 Terry on Wed, 13 Jan 2016, 08:25, edited 1 time in total.
Green but want to learn

User avatar
Adverse Effects
Senior Member
Posts: 1018
Joined: Sat, 01 Jan 2011, 03:30
Real Name: Adverse Effects
Location: Brisbane

CPU Water Coolers - Useful?

Post by Adverse Effects » Wed, 13 Jan 2016, 19:27

i agree with TooQik

even a HUGE water cooling kit for a monster of a gaming system is only good for around 300 watts of heat at its best and that can cost up to $1K just for the cooling system

it comes down to how much heat you have to get rid of and how much your willing to spend

you may be better off just making a much bigger heat sink with more fins and have a cool air intake at the front of the car and duct it strate to the fans on the heatsink
Last edited by Adverse Effects on Wed, 13 Jan 2016, 08:29, edited 1 time in total.

User avatar
Johny
Senior Member
Posts: 3689
Joined: Mon, 23 Jun 2008, 16:26
Real Name: John Wright
Location: Melbourne
Contact:

CPU Water Coolers - Useful?

Post by Johny » Wed, 13 Jan 2016, 19:43

I have a tendency to avoid liquids in a prototype system chock-a-block full of lethal voltages. But that's probably just me.
Just be careful with your air-cooled design and ensure that it has enough heatsinking area and plenty of air movement.

Paul9
Groupie
Posts: 241
Joined: Mon, 20 Apr 2009, 02:10
Real Name: Paul Coggiola
Location: Sydney

CPU Water Coolers - Useful?

Post by Paul9 » Wed, 13 Jan 2016, 20:33

Thanks guys!

There is not much air movement in my "engine bay" as I have closed off all the frontal area to improve aerodynamics.

My 96v set up lacks a little power, particularly at higher speeds up hills. Had I known back in 2008, what I know now, I would have opened the wallet a little wider and bought a 120v or even 144v system.

My "hobby" now is making modifications to the vehicle both in regard to rolling resistance and aerodynamics to get its performance up to satisfactory levels under all circumstances.

The photos of water cooling units I have seen on websites appear to consist of only three parts - a copper plate on a water reservoir from which come two pipes which link up to a 120mm x 120mm fan. I couldn't see any pumping mechanism in the photos (nor was one mentioned in the detailed product description). Maybe it works by thermodynamics or whatever they call hot water rising thru pipes?

Thanks TooQik - I already have two fans totaling 120mm x 120mm screwed on two heatsinks which are held onto the controller by double sided sticky thermal transfer paper. It is the possible inadequacy of this system I am worried about.

Thanks T1Terry and Adverse Affects - the size of the water coolers on the net appear to be roughly the same size as my existing fan/heat sink arrangement. On the net they are advertised at around $179 for the top-of-the-line coolers. If they can cost up to $1k then maybe there are other "bits" required to set up the water cooler?

Thanks Johny - I know what you mean about water and voltages!

I am going to drop into a computer shop which sells these things next week so I can get a better concept of how they work. I just wanted to talk to you guys first so I could visit the computer shop as prepared as possible.

Any further comments appreciated.

Thanks
Paul

T1 Terry
Senior Member
Posts: 687
Joined: Thu, 30 Sep 2010, 20:11
Real Name: Terry Covill
Location: Mannum SA

CPU Water Coolers - Useful?

Post by T1 Terry » Wed, 13 Jan 2016, 21:50

A possible "outside of the square" idea is using Peltier effect modules between the controller and heatsink. This effectively raises the heatsink temp another theoretically 25*C above the controller temp and the increased difference between ambient temp and the heatsink will allow a greater amount of heat transfer into the air, but it must be vented outside the car after that point though to prevent the heat being recirculated.

T1 Terry
Green but want to learn

TooQik
Groupie
Posts: 177
Joined: Mon, 18 Jun 2012, 00:53
Real Name: Chris
Location: Pakenham

CPU Water Coolers - Useful?

Post by TooQik » Wed, 13 Jan 2016, 22:17

Paul9 wrote:There is not much air movement in my "engine bay" as I have closed off all the frontal area to improve aerodynamics.
From this extra piece of information you posted, I think the key factor to solving your controller cooling is getting more air into your engine bay.

I'd be starting with ducting some outside air into the engine bay to increase the amount of air movement as both Adverse Effects and Johny have highlighted. You may find that this alone will be enough to keep the controller cool as your existing fans will be pushing potentially cooler air through your heat sinks. If this isn't sufficient, then start looking at the other options.

User avatar
Adverse Effects
Senior Member
Posts: 1018
Joined: Sat, 01 Jan 2011, 03:30
Real Name: Adverse Effects
Location: Brisbane

CPU Water Coolers - Useful?

Post by Adverse Effects » Thu, 14 Jan 2016, 04:26

here is a good beginner guild as to how a PC water cooling system is setup

this kit would be able to remove about 100 watts of heat

i am guessing your going to be dealing with LOTS (over 1000 watts) of heat

[tube]https://www.youtube.com/watch?v=Dk3V64ZSsEI[/tube]

now the sticky parts here are

1:- finding a water block that will fit to your needs and have enough coolant flow

2:- finding a pump that will have enough grunt to push enough water through your cooling loop

3:- a large enough radiator that will handle the amount of heat your putting in to the coolant

4:- getting cool air to the fans on the radiator (no point in running hot air from the engine bay in to the hot radiator)

*********************
problems with PC gear
*********************
1 CPU water blocks are only good for about 80 to 100 watts of heat at best

2 PC cooling loops have only a small volume of coolant flow

3 PC radiators are not designed to be in a vibrating environment and will fail quickly if they are

__________________________________________________

if it was me i would

1St get some forced cool air piped directly from the front of the car (if you have 120mm fan you want a 200mm hole and pipe)to the fans you have now

2nd remove that heat sink you have now and lap the base of it and the base of the controller where the heat sink go's to get them as flat as possible so you have as perfect mating faces as you can then work out a way to mount them together (and not with double sided tape, )

see how it has springs to make sure it will all ways have a good connection

and use about 1/8 of a pea size dolip of some form of heat past so you have as little as possible there the less you have in the gap the better the stuff works (hence the lapping the 2 faces to get them flat)

-----------------------------------------

if this is still not enough just let me know and i will try to work out a cheep (scrap yard) set of parts list for a water cooling rig for you
Last edited by Adverse Effects on Wed, 13 Jan 2016, 17:42, edited 1 time in total.

User avatar
Adverse Effects
Senior Member
Posts: 1018
Joined: Sat, 01 Jan 2011, 03:30
Real Name: Adverse Effects
Location: Brisbane

CPU Water Coolers - Useful?

Post by Adverse Effects » Thu, 14 Jan 2016, 05:25

Paul9 wrote:the size of the water coolers on the net appear to be roughly the same size as my existing fan/heat sink arrangement. On the net they are advertised at around $179 for the top-of-the-line coolers. If they can cost up to $1k then maybe there are other "bits" required to set up the water cooler?

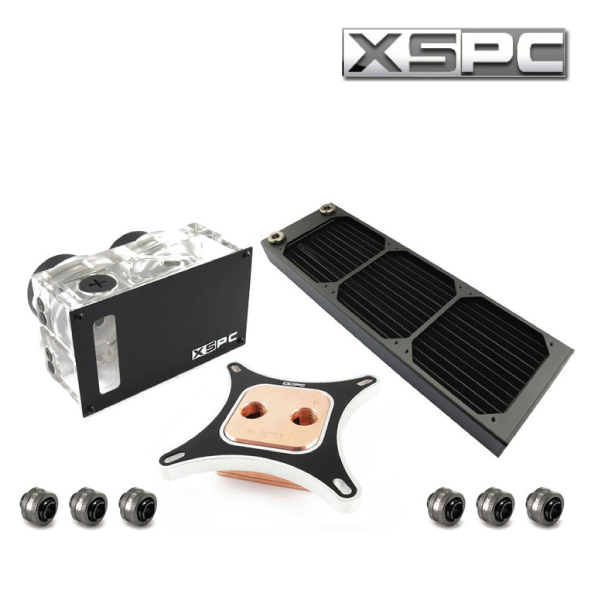

let me guess your talking about one like these
